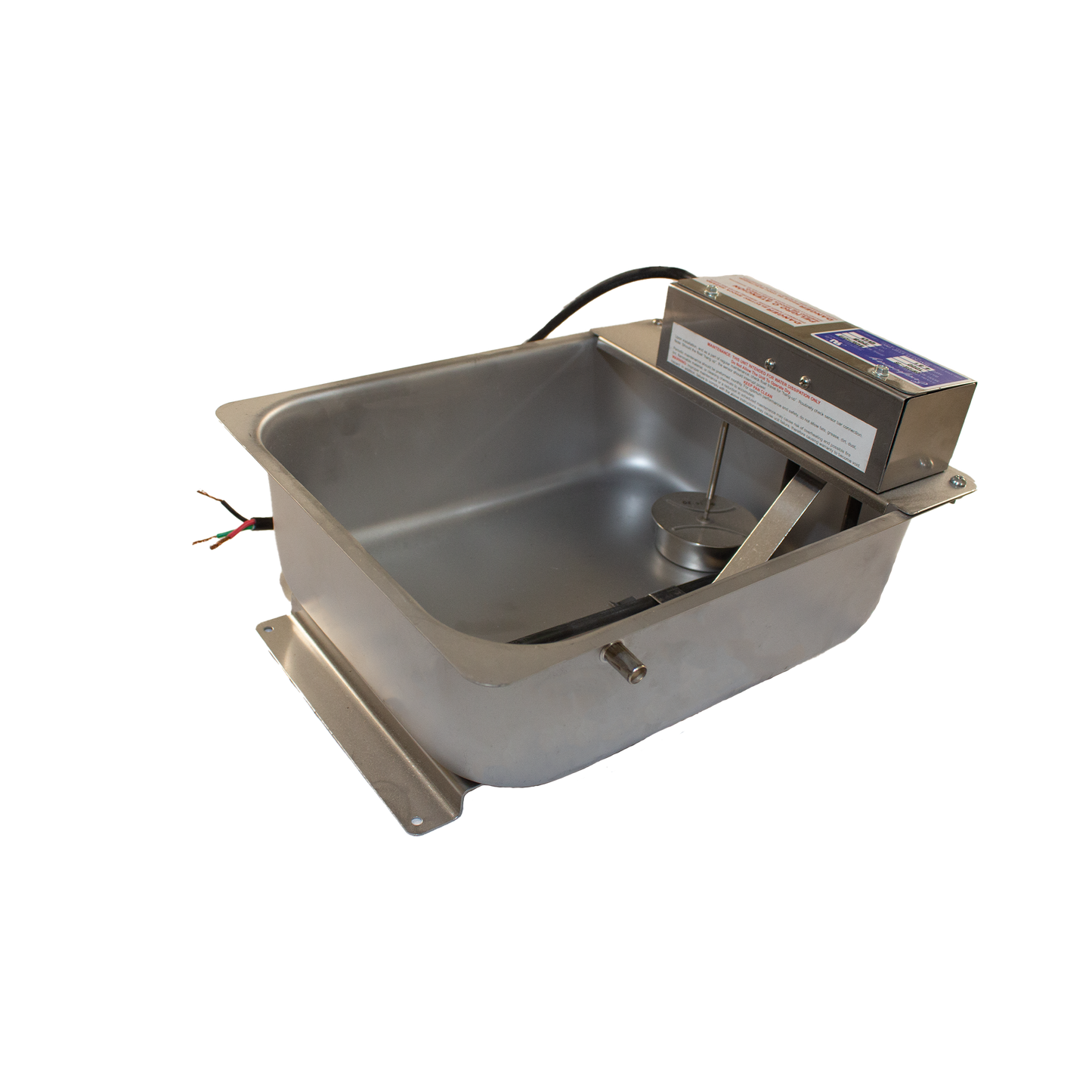

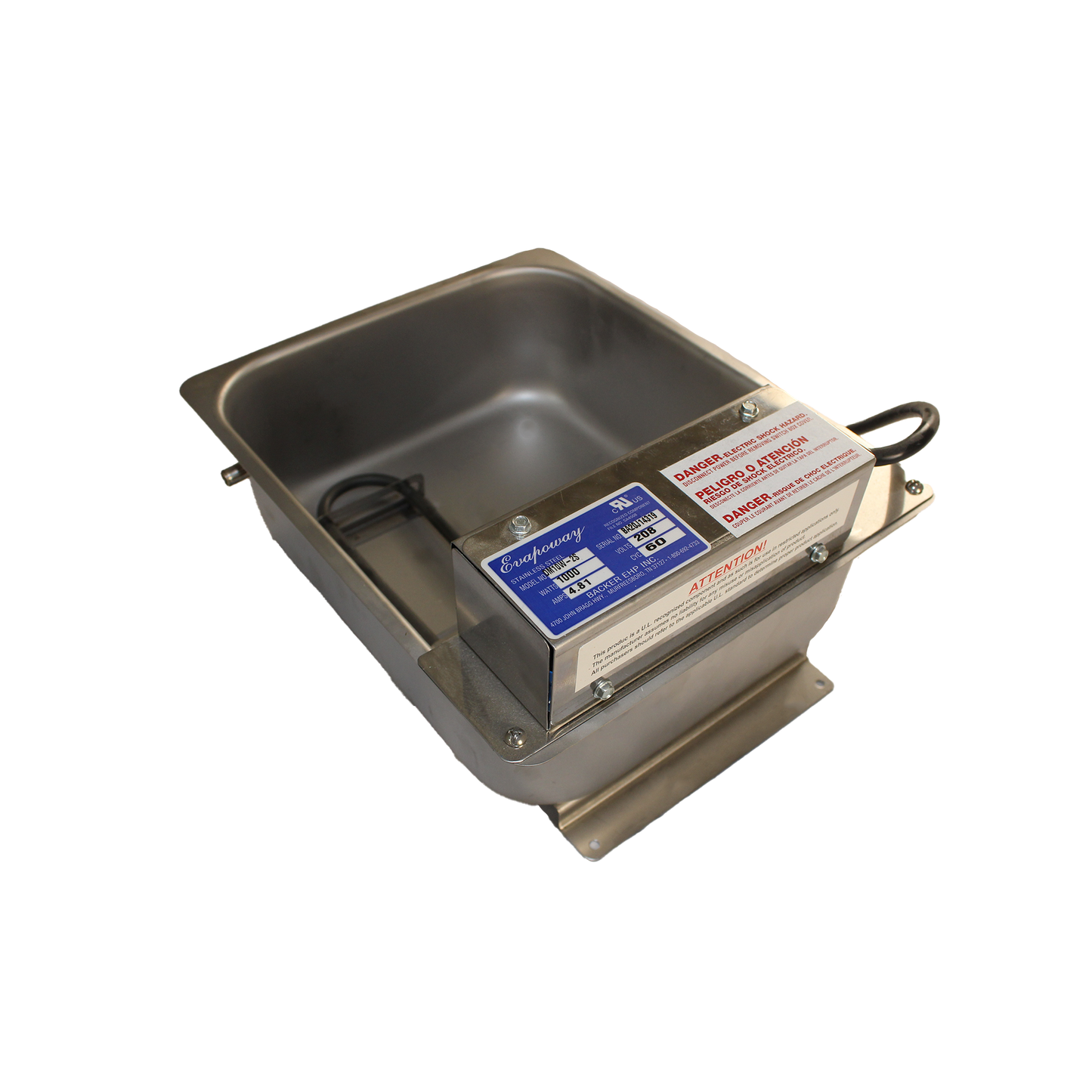

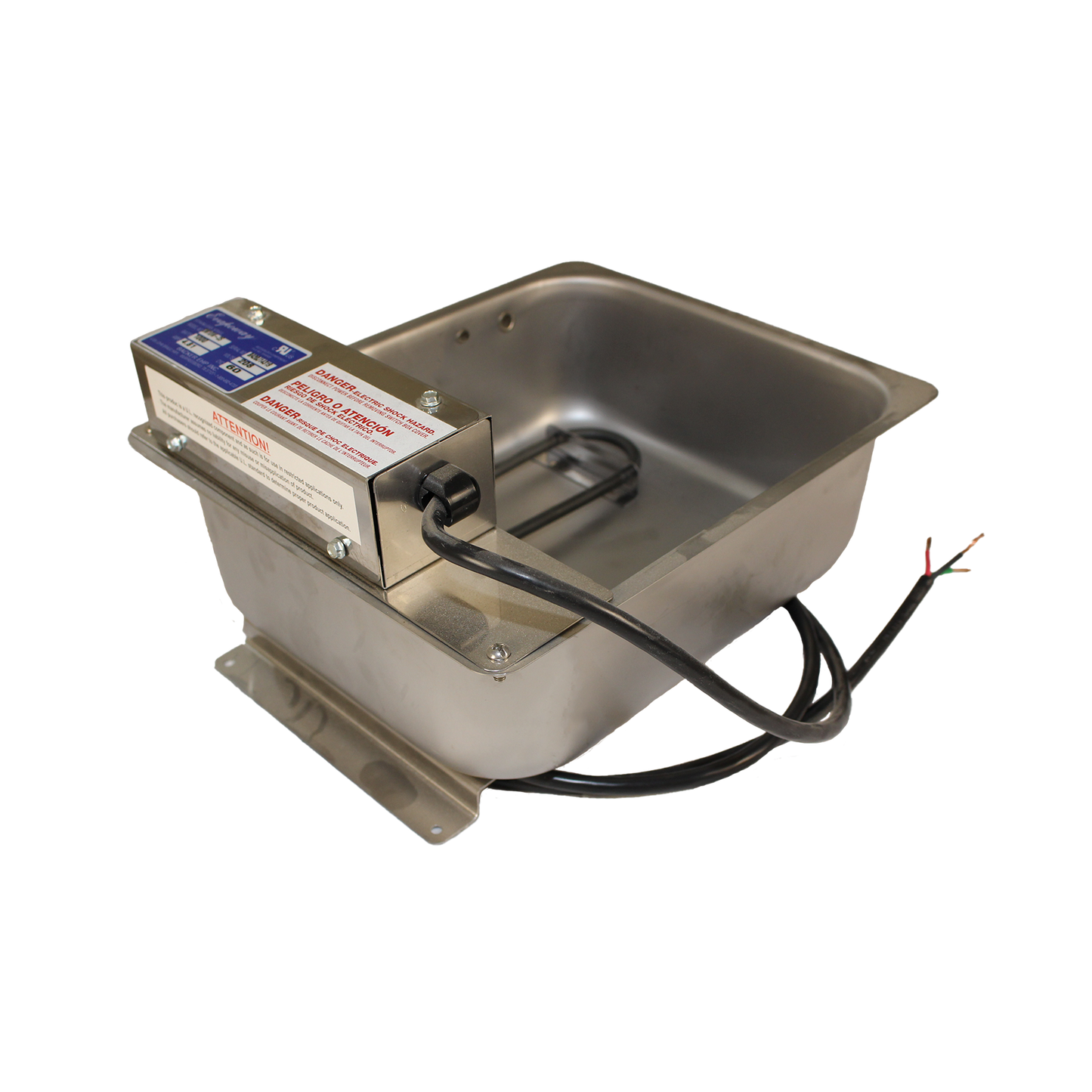

DM10W-2S is an Evapoway™ anti-condensate pan with a single bend heating element. This pan is designed to evaporate defrost and condensation when drain lines aren't available or practical. The heating element is activated by a float switch to provide the required heat for your particular application to eliminate condensation water. Evaporators are commonly used in the commercial refrigeration, HVAC, Industrial units and elevators. The pan is constructed of corrosion-resistant 301 stainless steel for durability and longevity. Features a .375" diameter overflow grommet hole on the side of the pan.

Additional Information

Color	Stainless Steel
Material	Stainless Steel
Voltage	208v
Wattage	1000
Amps	4.81
Includes	Bare Wire Leads
Dimensions	13" L x 10" W x 4" H
Weight	8 lbs.

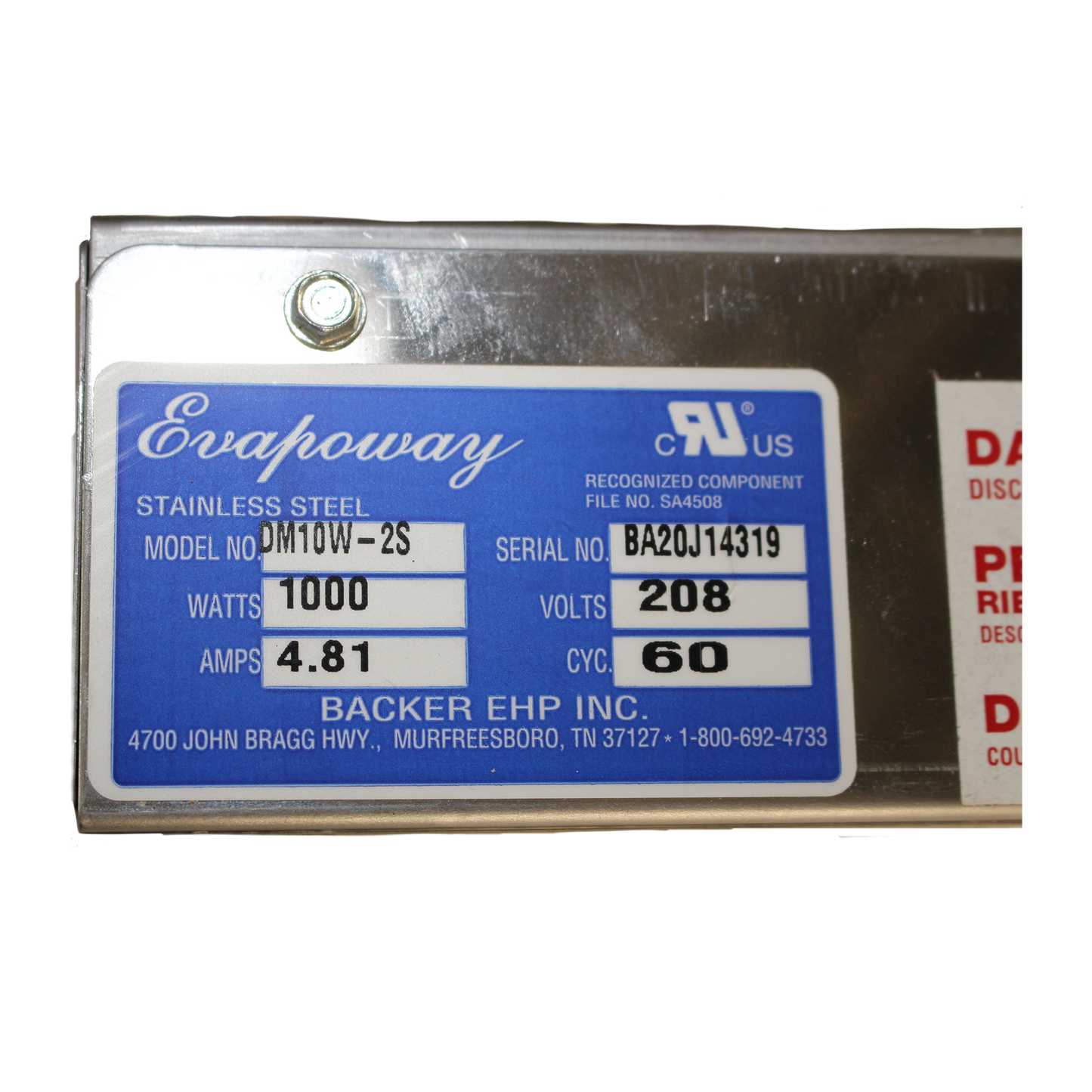

Model	DM10W-2S

Key benefits:

• Durable and reliable construction
• 301 stainless steel is corrosion-resistant
• Positive evaporation
• Pans are NSF-certified
• UL recognized in the United States and Canada
• Independent of ambient conditions
• Space-saving design
• High limit safety and float switch operation
• Variety of sizes to accommodate different capacities, voltages
